10Body text, sections and headings

10.8

Additional section rows

This is just a sum­mary of the head­ings men­tioned in the pre­vi­ous sec­tions; it shows how I’ve used the <h1>...<h6> head­ing el­e­ments in the dif­fer­ent types of <sec­tion> el­e­ments: lead-in, sec­tion, sub­sec­tion and in­line sec­tion

10.8.1

The <h1> heading element

I haven’t dis­cussed the <h1> el­e­ment, if you re­mem­ber, the <sec­tion> el­e­ments start with the <h2> head­ing el­e­ment and progress from there to the <h6> el­e­ment — I missed out the <h1> head­ing al­to­gether.

The <h1> head­ing is used to give the chap­ter head­ing (we’ve only looked at sec­tions so far). The chap­ter head­ing ap­pears at the top of each web page

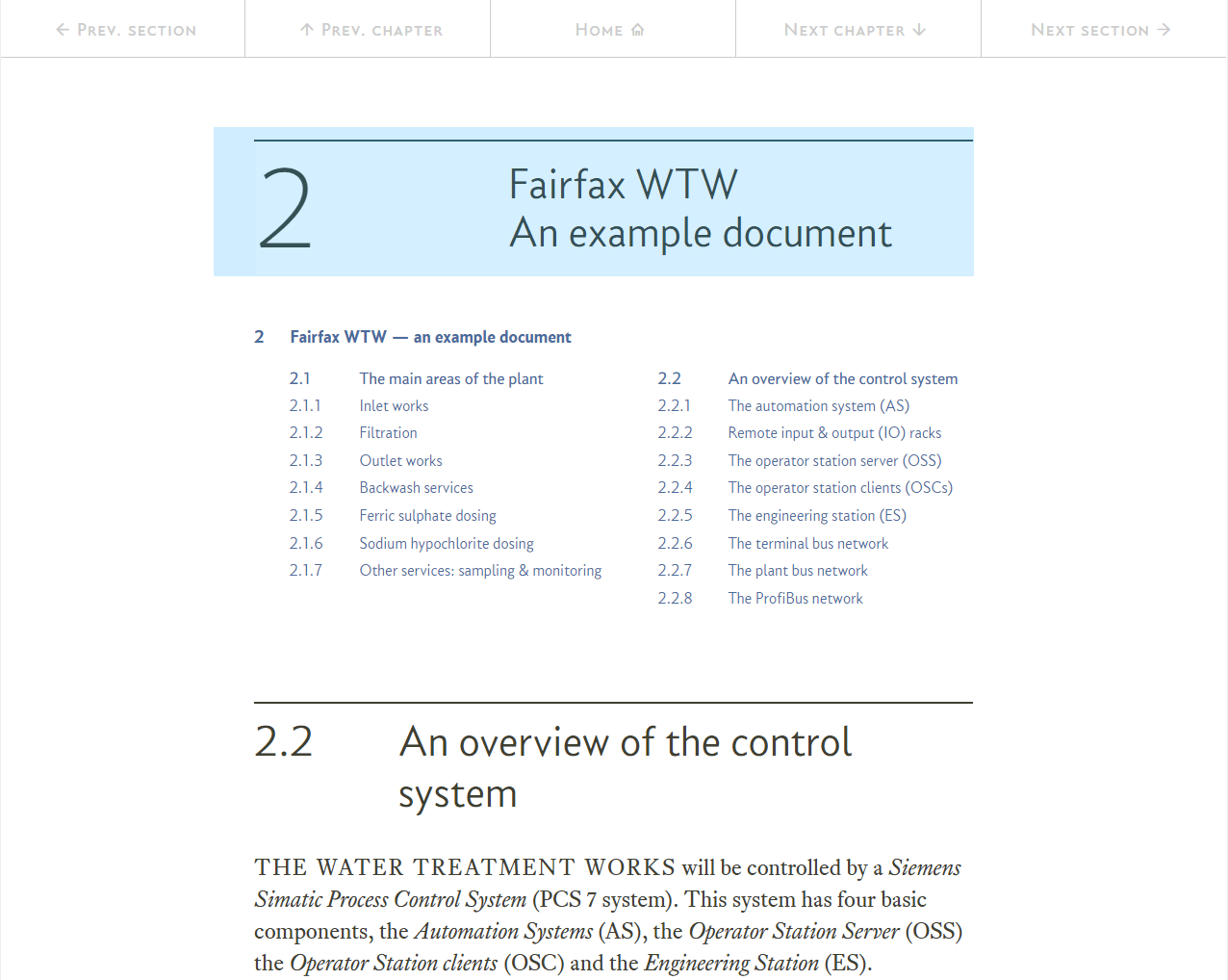

Figure 10.25 - Chapter heading
Figure 10.25   Chapter heading

I’ve high­lighted it in Fig­ure 10.25.

There is only one <h1> head­ing on a page†1 and this is al­ways the chap­ter num­ber and chap­ter head­ing text.

Chap­ter num­bers are al­ways in the for­mat XX; they do not have a dec­i­mal point. Sec­tions have the for­mat XX.​YY where XX is the chap­ter num­ber and YY the sec­tion num­ber within that chap­ter, sub­sec­tions take this one step fur­ther with the for­mat XX.​YY.​ZZ where XX and YY are the same chap­ter and sec­tion num­ber, ZZ being the sub­sec­tion num­ber within the sec­tion.

The <h1> head­ing forms part of the <header> se­man­tic el­e­ment and I dis­cuss this fur­ther in section 11.

†1 Prior to HTML 5 and CSS 3, it was one of the cardinal rules of HTML that there could be only one <h1> level heading. Additionally, the rule prescribed that this singular <h1> heading should denote the primary subject matter of the page. With HTML 5 and CSS 3 this rule was relaxed and each <section> semantic element could have its own <h1> heading.
In terms of this template, I use a chapter, section, subsection hierarchy that lends itself to the old fashioned way of doing things, so I stick to the old rule of just one <h1> heading per page.

10.8.2

The <h2> heading element

The <h2> head­ing has two uses, first (and mainly) as the head­ing for a stan­dard sec­tion (high­lighted below):

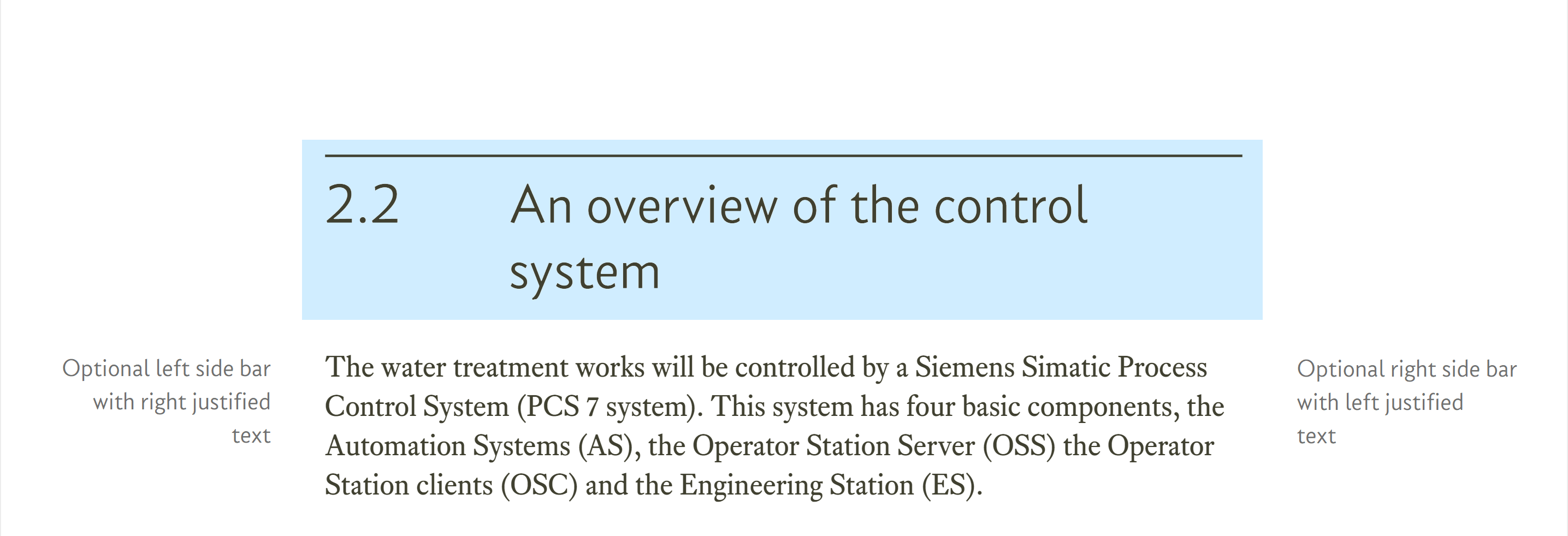

Figure 10.26 - Standard section h2 heading
Figure 10.26   Standard section — <h2> heading

It can also be used as the side­bar title for a lead-in sec­tion:

Figure 10.27 - Standard section h2 sidebar  heading
Figure 10.27   Standard section — <h2> sidebar heading

Let’s look at the code be­hind the <h2> head­ing, this is de­fined near the start of the style.​css file and looks like this:

style.css
  1. h1, h2, h3, h4, h5, h6 {                    /* set standard headings */
  2.     font-family: 'conc-t3-r';
  3.     font-weight: normal;
  4.     font-feature-settings: "ss02";
  5.     font-size: 100%
  6. }
Code 10.14   CSS classes for the headings

This is fairly straight for­ward stuff, just fonts and sizes re­ally.

Firstly, all the head­ings <h1>...<h6> are made iden­ti­cal; they all use the sans serif Con­course font:

    font-family: 'conc-t3-r';
    font-weight: normal;

The next line just makes sure that no embed font weights are used (there aren’t any in these fonts, see § 9.3)

Next I set the font to use the British styl­is­tic set:

    font-feature-settings: "ss02";

Fi­nally, I set the font size to be iden­ti­cal to the html el­e­ment size (i.e. 24 pix­els that is re­spon­sive, re­duc­ing to 12 pix­els at a browser width of 520 px, see § 10.1.1)

    font-size: 100%

This last line is im­por­tant, it im­bues the head­ings with the re­spon­sive as­pects of the html text; and while I will sub­se­quently change the font-size (the head­ings are gen­er­ally big­ger than the html text), they will just be a scaled ver­sion of the html text font size (I use the rem unit, and this is al­ways rel­a­tive to the html text size).

Thus as the browser width be­comes nar­rower, the head­ings will be­come smaller along with the body text, but will al­ways main­tain the same rel­a­tive size dif­fer­ence.

The next ques­tion is “if I’ve set the <h2> font-size to be the same as the html body text, why is it big­ger in the sec­tion head­ings?”

The an­swer is given in the section title, the <h2> head­ing is em­bed­ded in ei­ther the sub-title-num-box class (for the head­ing num­ber) or the sub-title-text-box class (for the head­ing text); in ei­ther case it is these classes that spec­ify the font-size (Code 10.4):

.sub-title-num-box {                        /* container for sub-title number */
   . . .
    font-size: 1.9rem;
    color: #404030;
}

The font size is set to 1.9 rem and colour to the off grey #404030 (this is also true of sub-title-text-box).

By em­bed­ding the <h2> within these classes, (in both cases the <h2> el­e­ment is a child of the class) it adopts the prop­erty of the class so the font size be­comes 190% of the body text size.

At this point you’ve prob­a­bly gone back through your notes and are about to point out that I’m a com­plete idiot and don’t know what I’m talk­ing about (I gen­er­ally ac­cept this type of crit­i­cism with the self-dep­re­cat­ing wis­dom taught to all Eng­lish­men at school).

“Look” you will say “in section 5.6.1 you said that later prop­er­ties over­ride ear­lier prop­er­ties and here the <h2> tag al­ready has a font size prop­erty and it is ap­plied later than the sub-title classes”

And you’re right, but you must also re­mem­ber that de­spite our charm­ing self-dep­re­ca­tion, Eng­lish­men are also taught to rule†1  — and whilst you are right, so am I. The <h2> font size de­c­la­ra­tion is:

    font-size: 100%

No­tice here that I’ve spec­i­fied the font size as a per­cent­age (%) not as a rem. This is im­por­tant; when I spec­ify the size as a per­cent­age it means that the text will be 100% of the text size of the par­ent el­e­ment. In this case the par­ent el­e­ment is ei­ther the sub-title-num-box or sub-title-text-box class and in both classes I’ve set the font size to be 1.9 rem. This leads to a bit of a chain (I’m as­sum­ing the browser width isn’t trig­ger­ing re­spon­sive ad­just­ments):

  1. The html class spec­i­fies that all text has a font size of 24 px

  2. sub-title-text/num-box sets its text to be 1.9 rem
    (1.9 × the html font size = 45 px)

  3. The h2 class spec­i­fies that the font size is 100% of the par­ent el­e­ments font size (that is 100% of the sub-title-text/num-box font size) so it re­mains 45 px

If I’d set the h2 font size to be 1 rem, then the sub-title-text/num-box classes could not have changed it.

When the <h2> head­ing is used in the side­bar, there are some other prop­er­ties that have to be changed, the main one being the font fam­ily, the side­bar <h2> head­ing uses the Eq­uity serif font (rather than the Con­course font); these changes are made specif­i­cally in .aside-head h2 de­scen­dent class:

.aside-head h2 {
    font-family: "eqty-ta-bi";
    font-size: 1.3rem;
    margin-top: -0.45rem;
    line-height: 1.40;
}

Rather than re­peat my­self, I refer you to the aside heading style sec­tion.

†1 “Rule, Britannia” the song says. The comma is important; it’s not an observation, it’s an instruction (from God, or at least from James Thomson). We’re supposed to rule.

10.8.3

The <h3> heading element

The <h3> head­ing is used for sub­sec­tions:

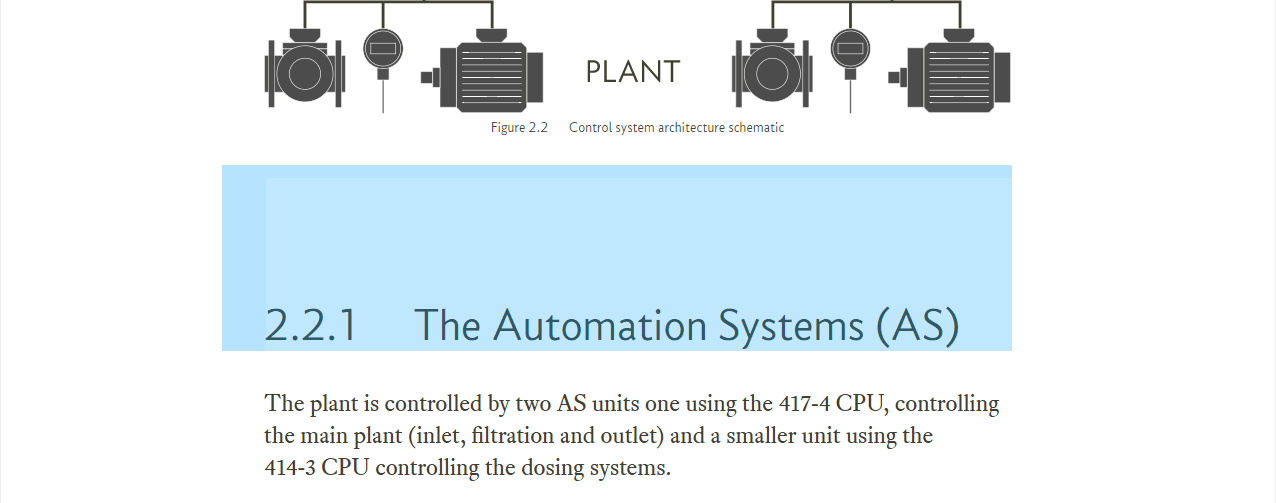

Figure 10.28 - Subsection h3 heading
Figure 10.28   Subsection <h3> heading

The <h3> head­ing is al­most iden­ti­cal to the <h2> stan­dard sec­tion head­ing; in fact they start off being iden­ti­cal with the de­c­la­ra­tion in Code 10.14. How­ever, this is qual­i­fied with the fol­low­ing CSS:

h3 { margin-top: 5rem; }

This just adds more white space above the head­ing, I’ve shown the <h2> and <h3> head­ings side-by-side for com­par­i­son here (the mar­gins are in pur­ple):

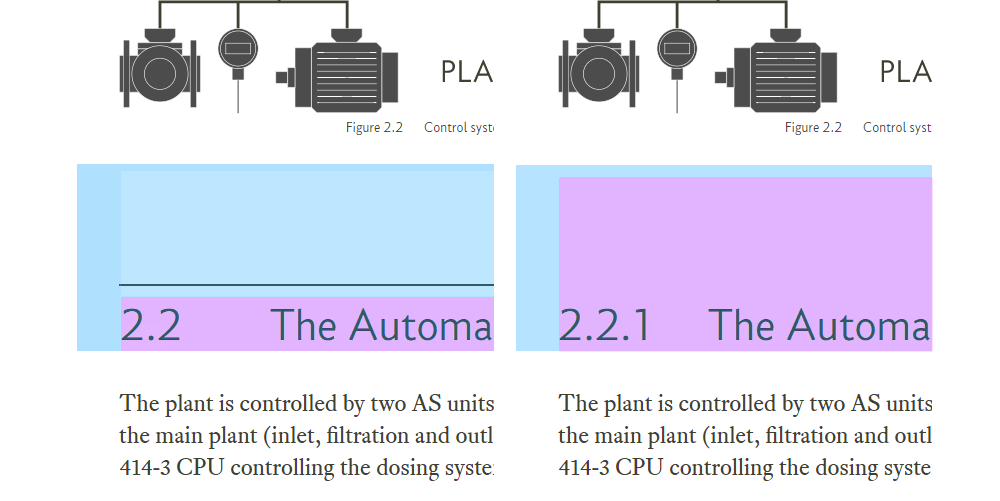

Figure 10.29 - Standard section h2 and h3 heading margin differences
Figure 10.29   Standard section — <h2> and <h3> heading margin differences

The <h3> head­ing needs a big­ger mar­gin be­cause it doesn’t have an over-line (which in the case of the <h2> head­ing car­ries the mar­gin).

The two head­ing are de­signed to have the same dis­tance be­tween the pre­ced­ing sec­tion and the head­ing, this can be seen in Fig­ure 10.29. The dif­fer­ence be­tween the sec­tion and the sub­sec­tion head­ings is that there is no line above the sub­sec­tion head­ing — this is done to make the sub­sec­tion in­fe­rior to the sec­tion

10.8.4

The <h4> heading element

The <h4> hhead­ing is used for in-line sec­tions:

Figure 10.30 - Inline section h4 heading
Figure 10.30   Inline section <h4> heading

The <h4> head­ing is al­most iden­ti­cal to the <h3> sub­sec­tion head­ing; they start off being iden­ti­cal with the de­c­la­ra­tion in Code 10.14. How­ever, this is qual­i­fied with the fol­low­ing CSS:

h4, h5 { margin-top: 2rem; }

This again adds white space above the head­ing, but not as much as the <h3> head­ing (the idea being that in-line sec­tions are in­fe­rior to the sub­sec­tions). To demon­strate the dif­fer­ence I’ve shown the <h4> and <h3> head­ings side-by-side for com­par­i­son here (the mar­gins are in pur­ple):

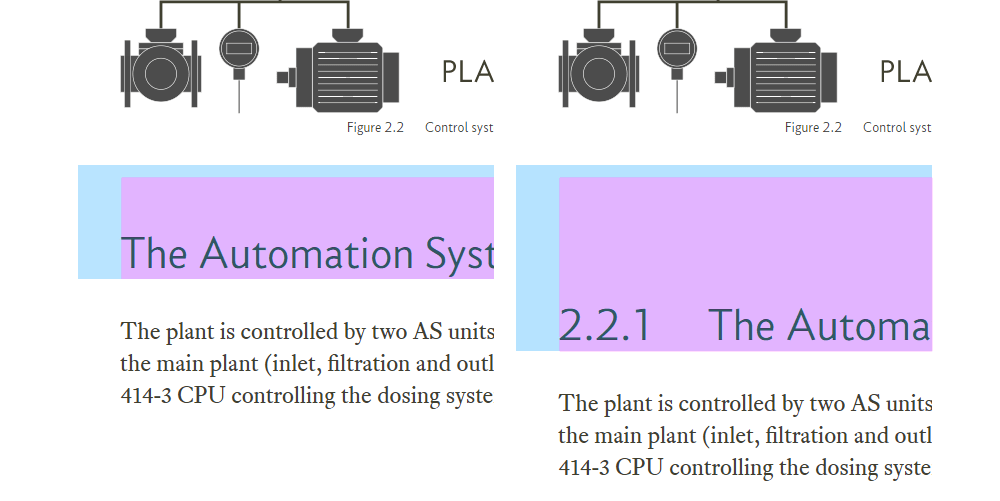

Figure 10.31 - Standard section h4 and h3 heading margin differences
Figure 10.31   Standard section — <h4> left and <h3> right — heading margin differences

The <h3> head­ing needs a big­ger mar­gin be­cause it doesn’t have an over-line (which in the case of the <h2> head­ing car­ries the mar­gin).

The two head­ing are de­signed to have the same dis­tance be­tween the pre­ced­ing sec­tion and the head­ing, this can be seen in Fig­ure 10.29. The dif­fer­ence be­tween the sec­tion and the sub­sec­tion head­ings is that there is no line above the sub­sec­tion head­ing — this is done to make the sub­sec­tion in­fe­rior to the sec­tion

10.8.5

The <h5> heading element

This one’s easy, I don’t use it. It has ex­actly the same set­tings as the <h4> head­ing, but it doesn’t ap­pear in the HTML.

10.8.6

The <h5> heading element

This is the in­vis­i­ble head­ing used for lead-in sec­tions. In­line sec­tions look like this:

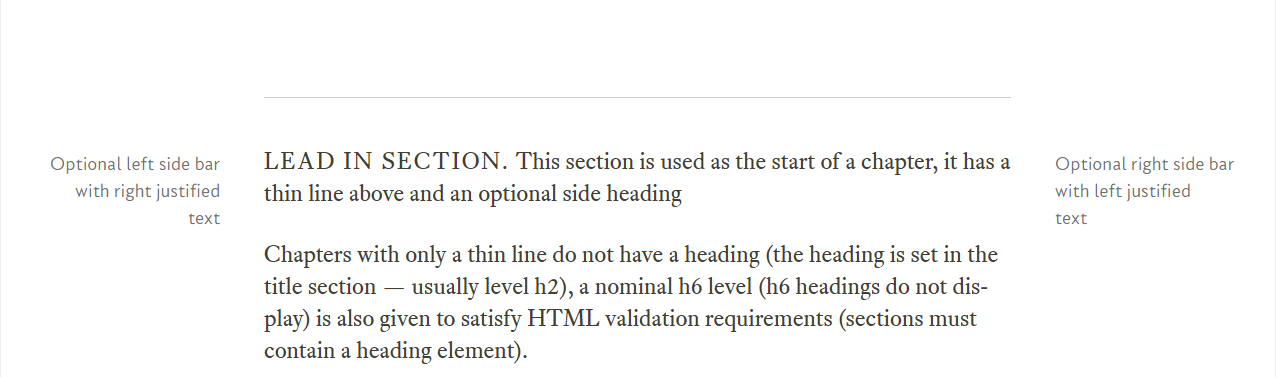

Figure 10.32 - h6 invisible heading used in lead-in section headings
Figure 10.32   <h6> — invisible heading used in lead-in section headings

I’ve al­ready ex­plained how this works, see section 10.4.

10.8.7

Headings: a summary

Heading Used for Apperance Over-line
h1 Chapter headings Very large chapter number with smaller heading text No
h2 Standard section Large chapter number with same sized heading text Yes, thick, dark grey line
h2 Lead-in sidebar Bold and italic serif font used in the sidebar area of Lead-in sections No
h3 Subsection Large chapter number with same sized heading text No
h4 Inline section Large chapter number with same sized heading text No, and has less whitespace above it
h5 Not used Identical to h4
h6 Lead-in section Not visible Yes, thin, light grey line
Table 10.3   Headings and their usage
