Conflicts between local and remote repositories

This is a re-enactment of what we did in § 6.7.3 where we made conflicting changes to the same line of the style.css file. In that case it was merging separate branches; here it will be merging changes between the remote and local repositories.

The style.css file currently is (in both the remote and local repositories):

style.css
h1, h2, h3, h4, h5, h6 {           /* set standard headings */
    font-family: sans-serif;
    font-weight:normal;
    font-size: 3rem;
    padding: 2rem 5rem 2rem 5rem;
}
h3 { font-size: 2.5rem; }

.cover-fig {                       /* holder for cover image */
    width: 50%;
    margin: 2rem auto;
    padding: 0;
}
Code 8.3   style.css d-03-contact local repository

Firstly let’s modify the file in the local repository.

Make sure you are on the d-03-contact branch, open style.css and add a colour declaration to the h3 element (this is exactly the same change we made in § 6.7.3):

h3 { font-size: 2.5rem; color: #c0504d; }
Local repository change

The h3 colour is changed to red. Save the change and commit it with the commit message:

D: Incremental build - 03-contact page

Style.css modified <h3> colour changed to red.

My commit point is [f52a6a5]. Tag the commit with the label d‑P03.03.03.

The Git pane is showing one change that needs to be pushed to the remote:

Figure 8.47 - Bracket—style.css change in local repository

Figure 8.47   Bracket—style.css change in local repository

Now let’s do the same in GitHub. Open the lab-01-website repository, select the d-03-contact branch and click the 11-resources folder to open it, then click 01-css and finally style.css. This will open a preview of the file:

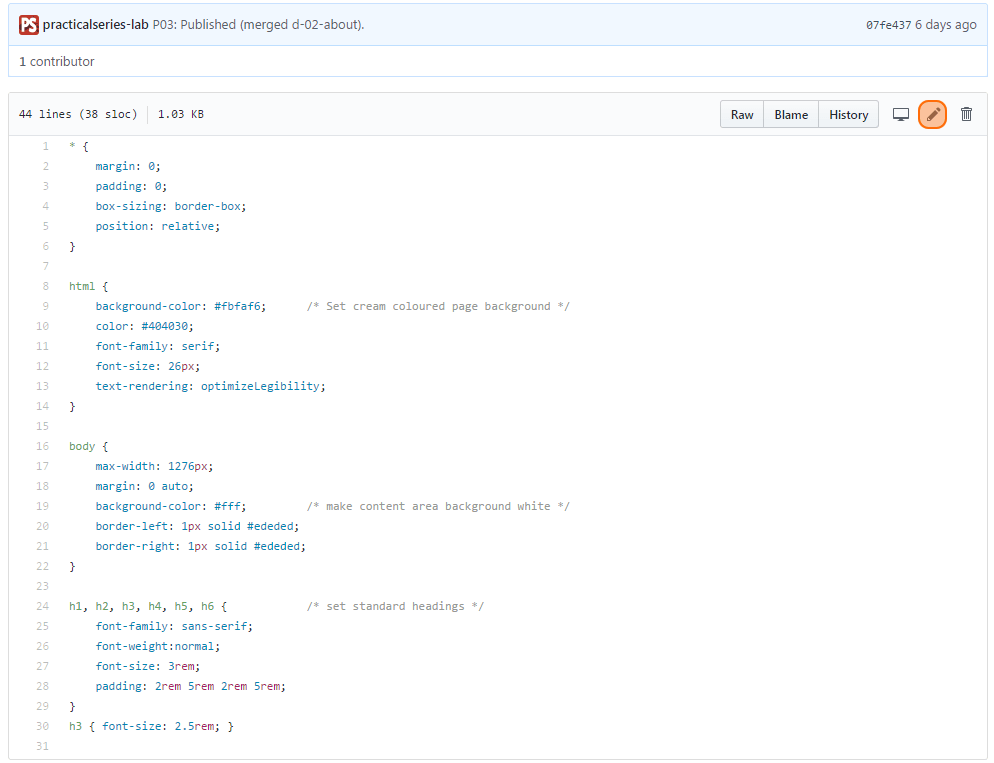

Figure 8.48 - GitHub—style.css preview in remote repository

Figure 8.48   GitHub—style.css preview in remote repository

Click the pencil to edit the file (highlighted):

Change line 30 to make it blue:

h3 { font-size: 2.5rem; color: #4F81BD; }
Remote repository change

And add this commit message:

D: Incremental build - 03-contact page

Style.css modified <h3> colour changed to blue.

It looks like this:

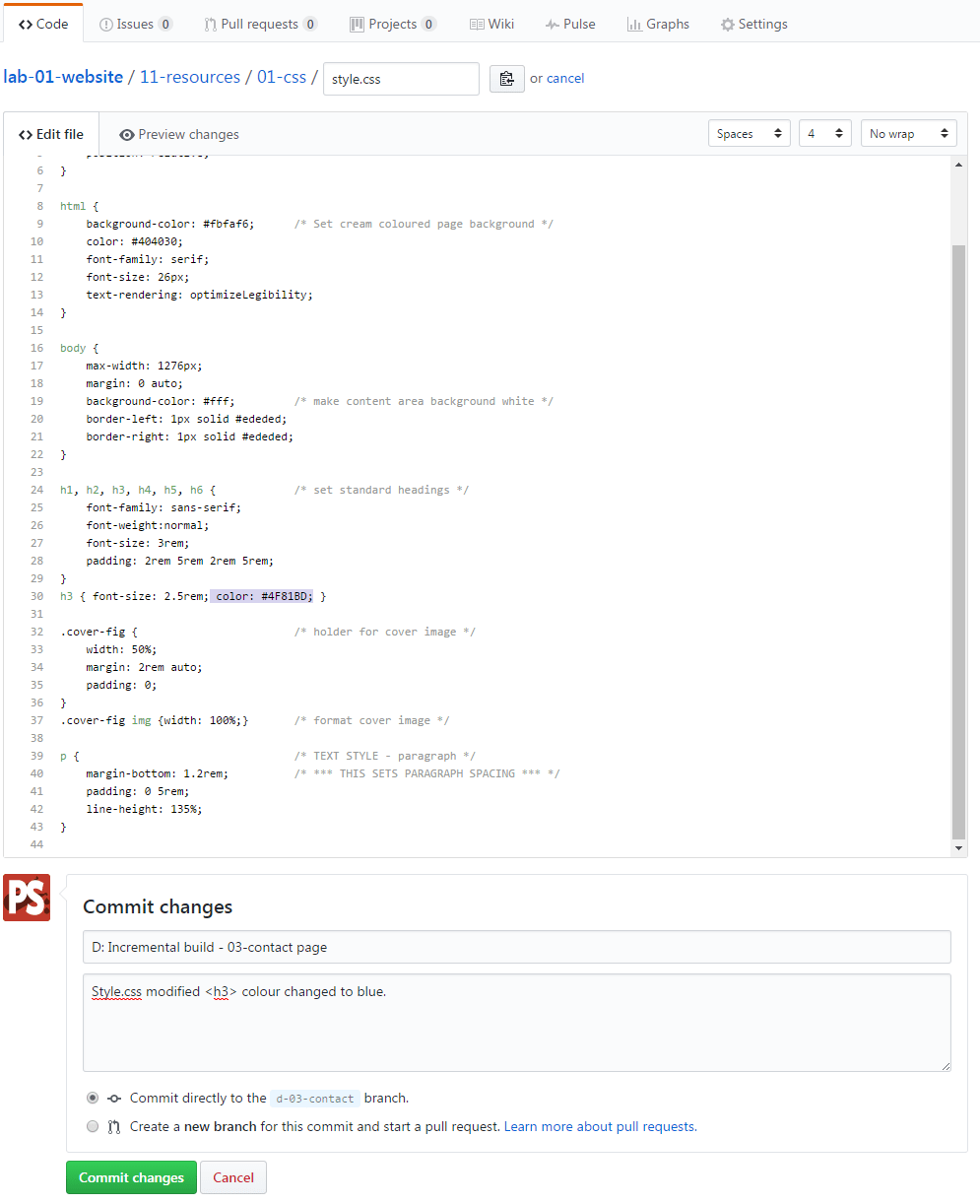

Figure 8.49 - GitHub—style.css edit in remote repository

Figure 8.49   GitHub—style.css edit in remote repository

Click the commit changes button. On the repository home page the new commit is [80fe002].

The workflows for the local and remote repositories are now (I’m only showing the d-03-contact branch):

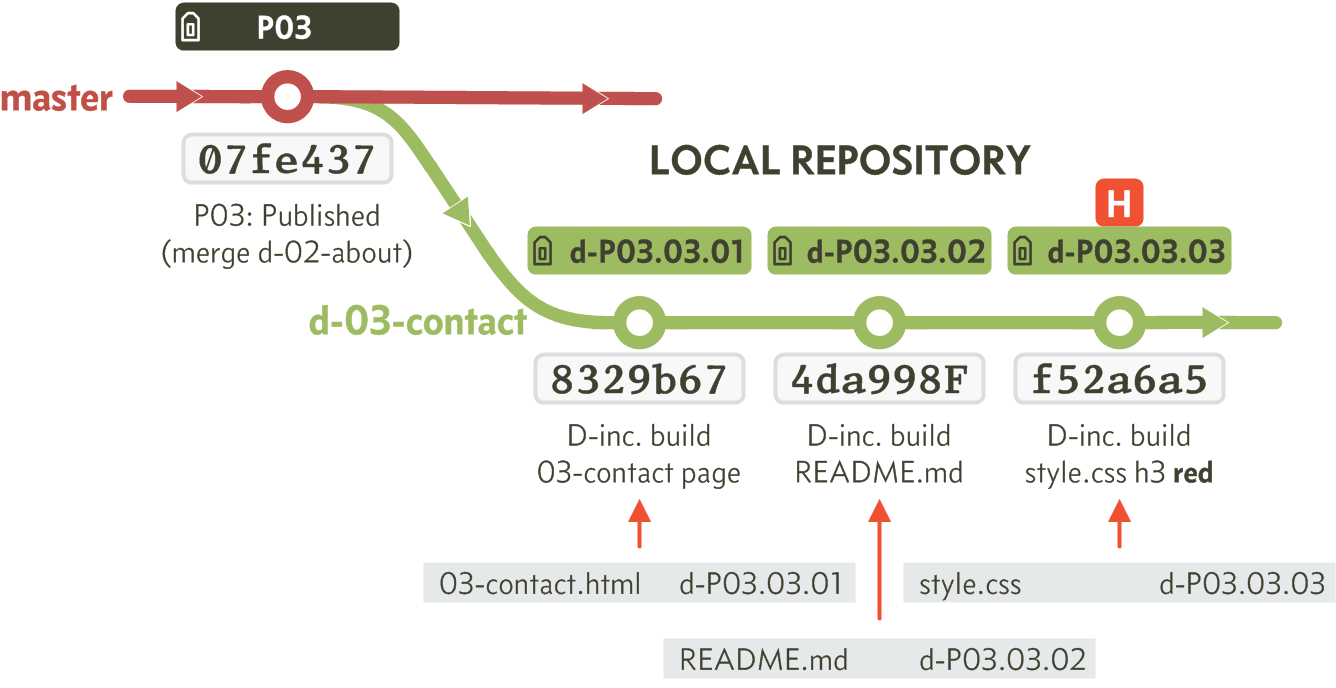

Figure 8.50 - Local repository workflow

Figure 8.50   Local repository workflow

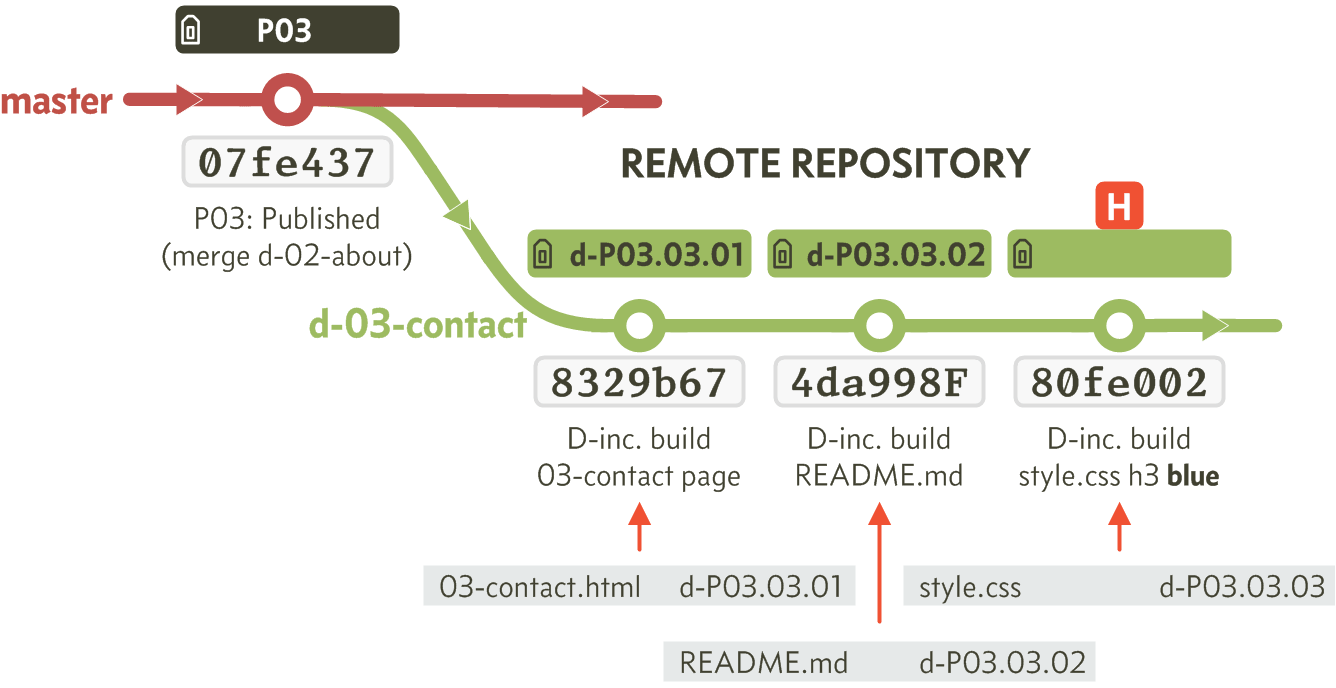

Figure 8.51 - Remote repository workflow

Figure 8.51   Remote repository workflow

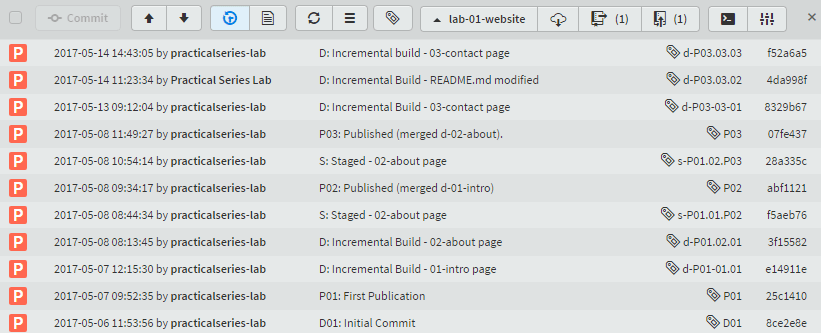

Let’s refresh the counters in Brackets, click the fetch button fetch icon.

It gives this:

Figure 8.52 - Brackets—Refresh counters

Figure 8.52   Brackets—Refresh counters

Not surprisingly we are showing one change to pull and one to push.

So what do we do? Do we push or do we pull?—or as the Clash didn't say “should I suck or should I blow?”

Well, the remote repository is the master repository so we pull its information into our repository and merge it together before we push it back with our changes.

The rule is:

ALWAYS PULL CHANGES FROM THE REMOTE
BEFORE PUSHING CHANGES BACK TO IT

So let’s do that. Click the git pull button pull icon. This opens the pull dialogue box:

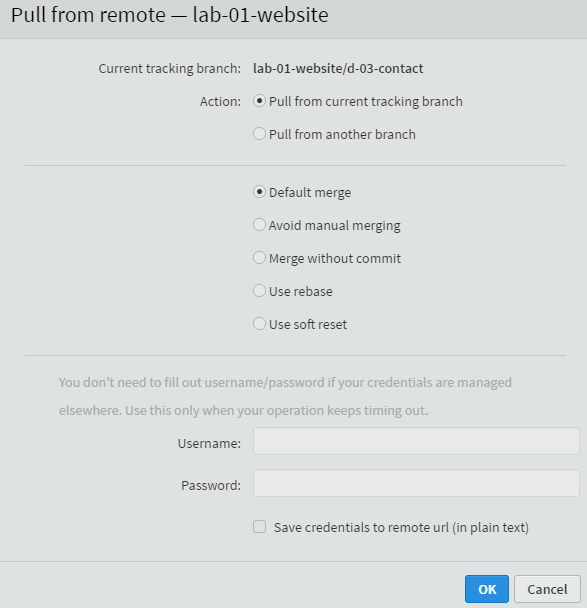

Figure 8.53 - Bracket—pull dialogue box

Figure 8.53   Bracket—pull dialogue box

Again leave all the defaults and click ok. This time the response is a conflict:

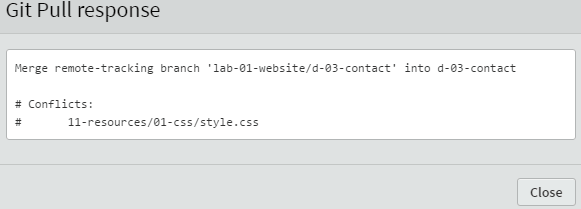

Figure 8.54 - Bracket—pull response dialogue box

Figure 8.54   Bracket—pull response dialogue box

It tells us that we have a conflict in style.css (as we would expect).

Click close, and Brackets will have opened a merged version of style.css in the editor showing the conflict. This process is now identical to resolving the merge conflict we had in § 6.7.3 and Figure 6.77:

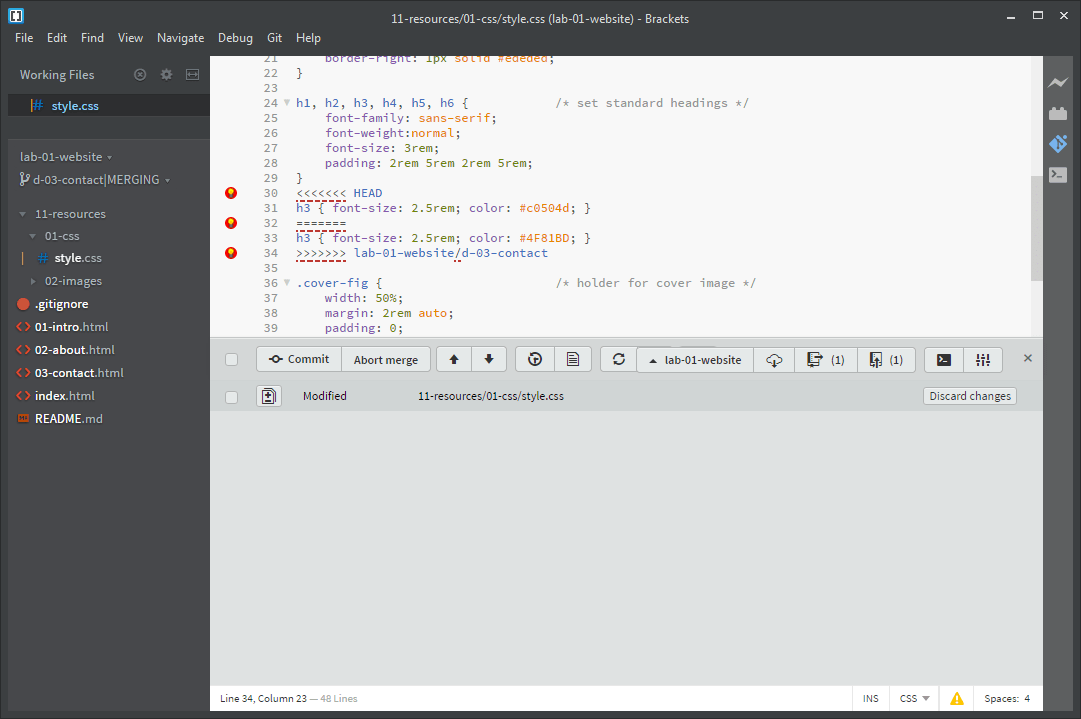

Figure 8.55 - Brackets—with a merge conflict

Figure 8.55   Brackets—with a merge conflict

Again we have an abort merge button in the Git pane. Click that and we go back to where we were before we tried to merge the repositories.

Brackets is telling us there is a conflict in the style.css file in just the same way as before, but this time the conflict is between the local head on d-03-contact and the remote d-03-contact branch on the remote lab-01-website repository:

style.css
<<<<<<< HEAD
h3 { font-size: 2.5rem; color: #4F81BD; }
=======
h3 { font-size: 2.5rem; color: #c0504d;}
>>>>>>> lab-01-website/d-03-contact
Code 8.4   style.css with a conflict

It starts with a line of less than signs:

<<<<<<< HEAD

the HEAD tells us that what follows is from the current local head (which is on the local d-03-contact branch).

The line that follows it is how the code is on the local branch (the red version):

h3 { font-size: 2.5rem; color: #4F81BD; }

Then we have a row of equal signs, this is just a divider:

=======

The last two lines are how the code is on the remote repository branch d-03-contact (this is the blue version):

h3 { font-size: 2.5rem; color: #c0504d;}
>>>>>>> lab-01-website/d-03-contact

The greater than signs show the merging repository, the lab-01-website is what we called the link to the remote repository (Figure 8.13) the /d-03-contact identifies the remote branch.

Again, Brackets is telling us it can’t decide what to do and it wants us to manually change the file to the correct version.

This time I’m going to keep the local (red) version.

Make the modifications:

style.css
h1, h2, h3, h4, h5, h6 {                    /* set standard headings */
    font-family: sans-serif;
    font-weight:normal;
    font-size: 3rem;
    padding: 2rem 5rem 2rem 5rem;
}
h3 { font-size: 2.5rem; color: #c0504d; }

.cover-fig {                    /* holder for cover image */
Code 8.5   Resolved style.css
  • You must delete the lines with the less than, greater than and equals signs too.

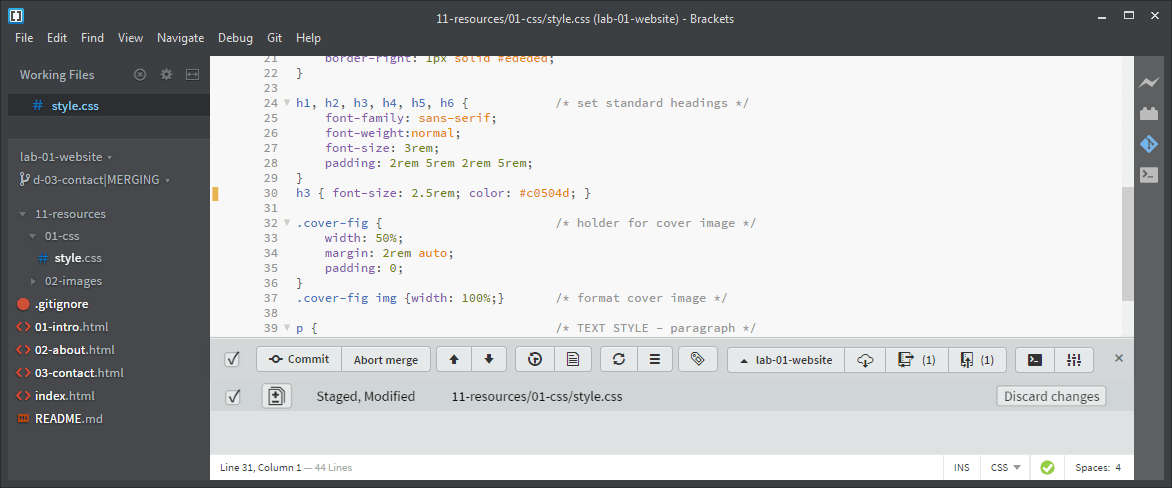

Mine looks like this after the modifications, Figure 8.56:

Figure 8.56 - Brackets—modified file after remote/local conflict

Figure 8.56   Brackets—modified file after remote/local conflict

Save style.css and make sure it is staged (tick the box in the Git pane).

Now click commit.

This will open a merge commit message dialogue box:

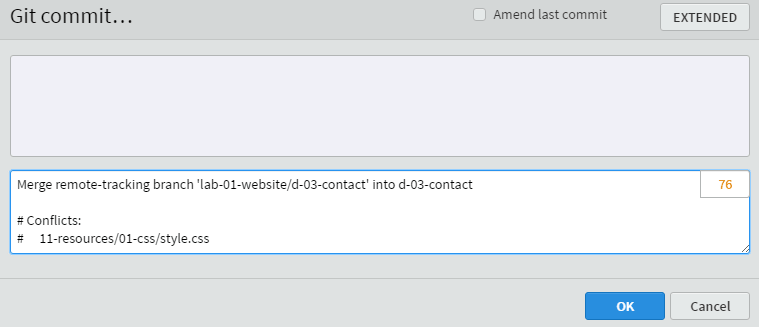

Figure 8.57 - Brackets—merge commit dialogue box

Figure 8.57   Brackets—merge commit dialogue box

Just go with the default message, click ok and return to Brackets:

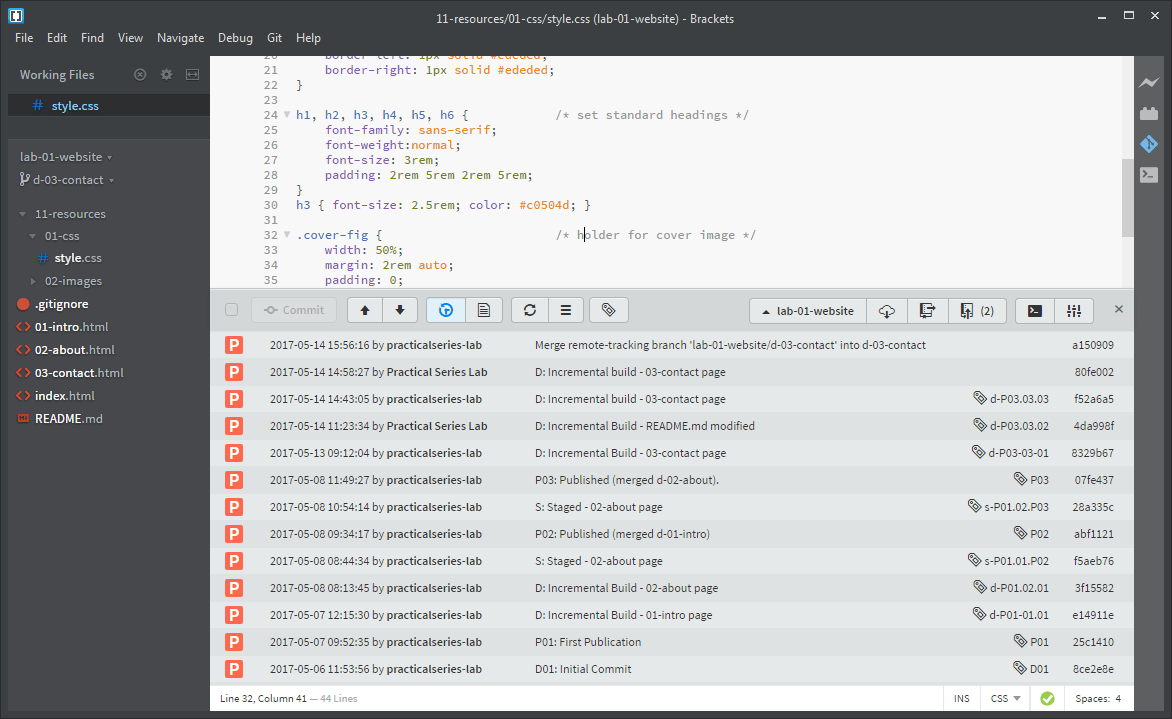

Figure 8.58 - Brackets—after the local/remote merge

Figure 8.58   Brackets—after the local/remote merge

So what’s happened?

Well, the local repository now has its original commit with the modified style.css (red) [f52a6a5]; it also has the commit for the modified style.css (blue) from the remote repository [80fe002]; and finally, it has a new merge commit [a150909] that resolves the conflict between the remote and local repositories (makes it red again).

Give the new commit point the tag s-P03.03.P04.

The local work flow is:

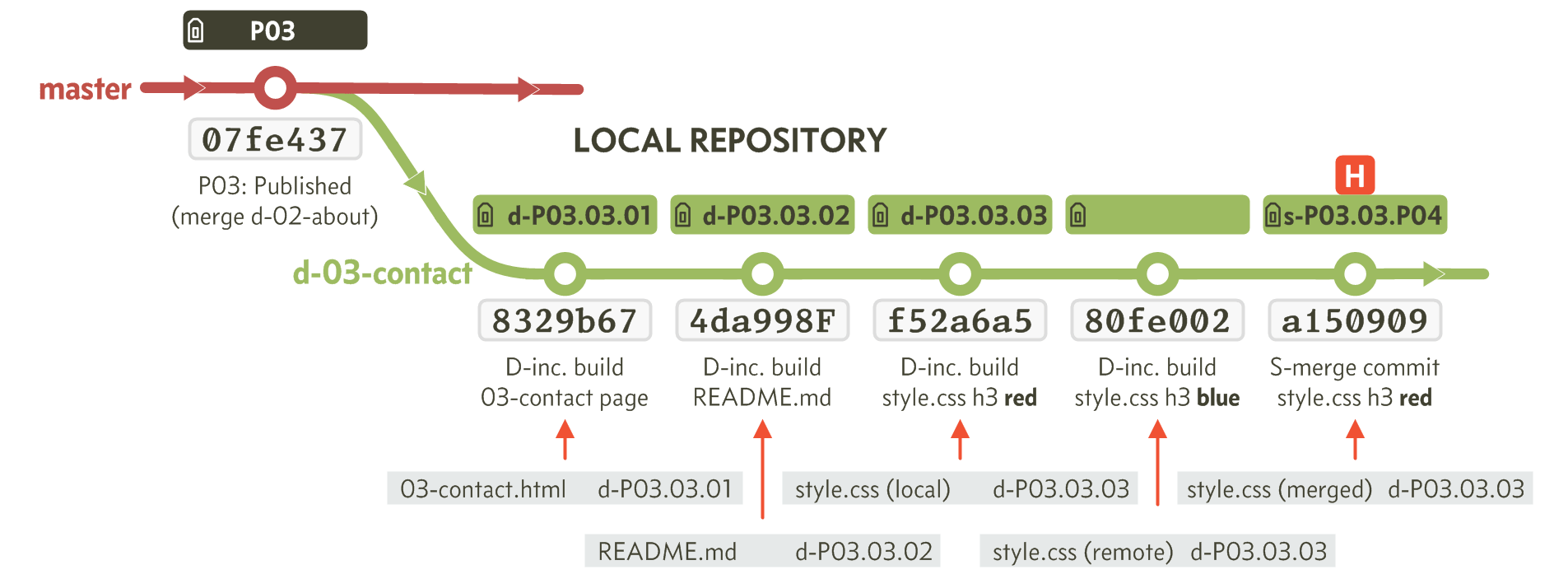

Figure 8.59 - Brackets—local workflow after merge

Figure 8.59   Brackets—local workflow after merge

Brackets is now reporting that there are two commits to push back to the remote repository: push icon. The two commits are the original style.css modification [f52a6a5] and the latest merge commit [a150909].

Let’s do the push to complete the thing. Click the git push button push icon.

Tick the send tags box on the push to remote dialogue box and click ok, and click ok again to close the response box.

Now to GitHub. Refresh the repository and make sure the d-03-commit branch is active. I have this:

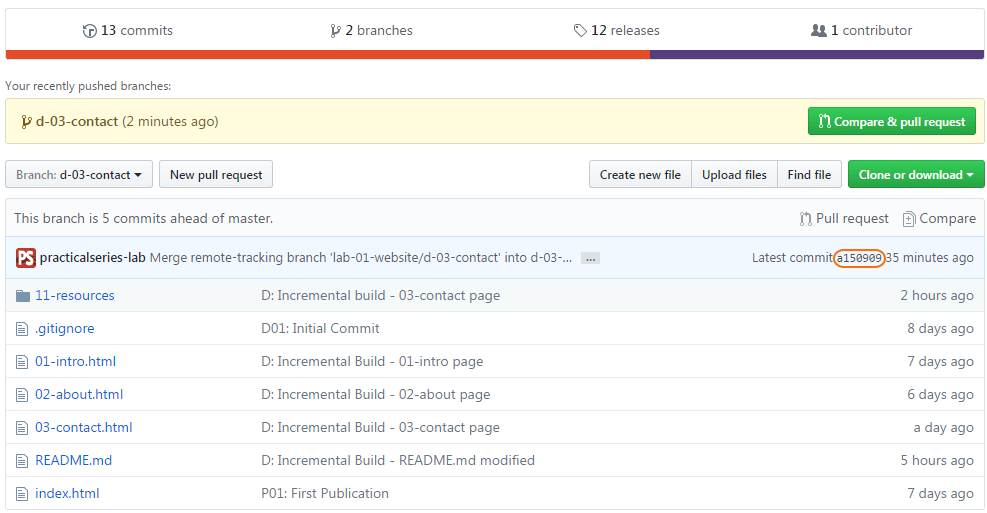

Figure 8.60 - GitHub—local/remote merged repositories

Figure 8.60   GitHub—local/remote merged repositories

GitHub is reporting 13 commits and that the latest commit is [a150909]. Go to the commits screen, everything is there:

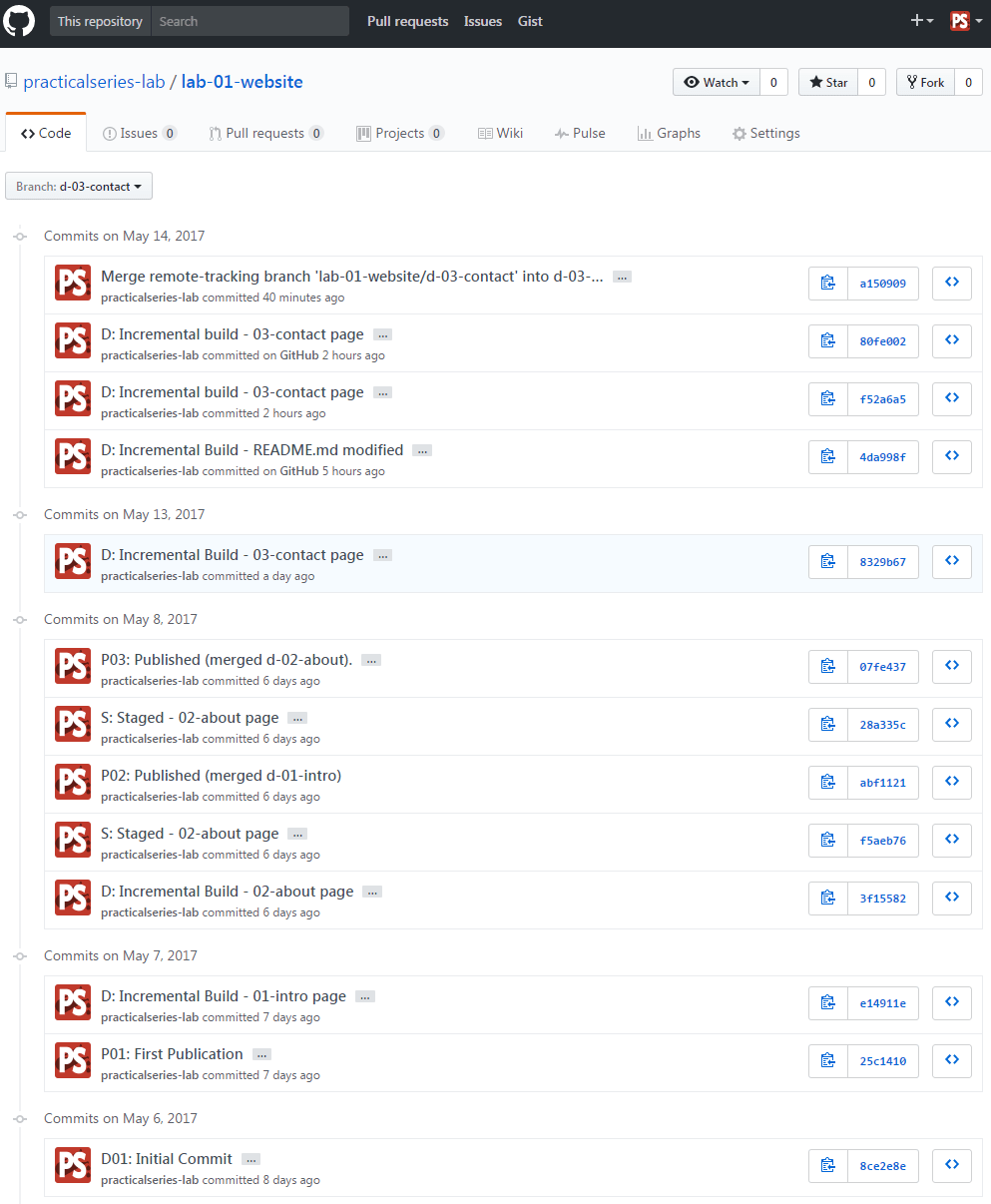

Figure 8.61 - GitHub—all commits

Figure 8.61   GitHub—all commits

The final workflow (in full) is:

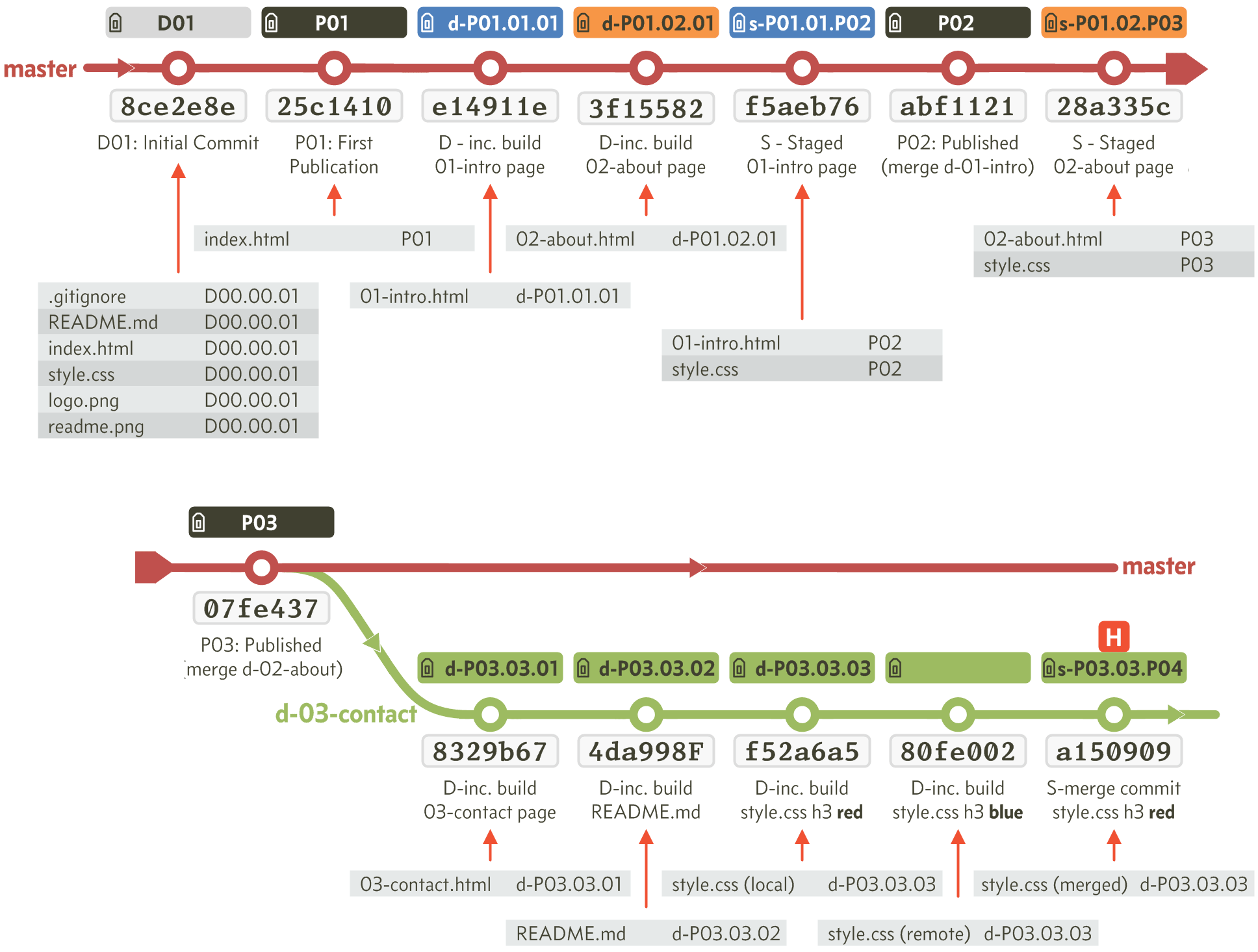

Figure 8.62 - GitHub—workflow

Figure 8.62   GitHub—workflow
